Equipment Introduction

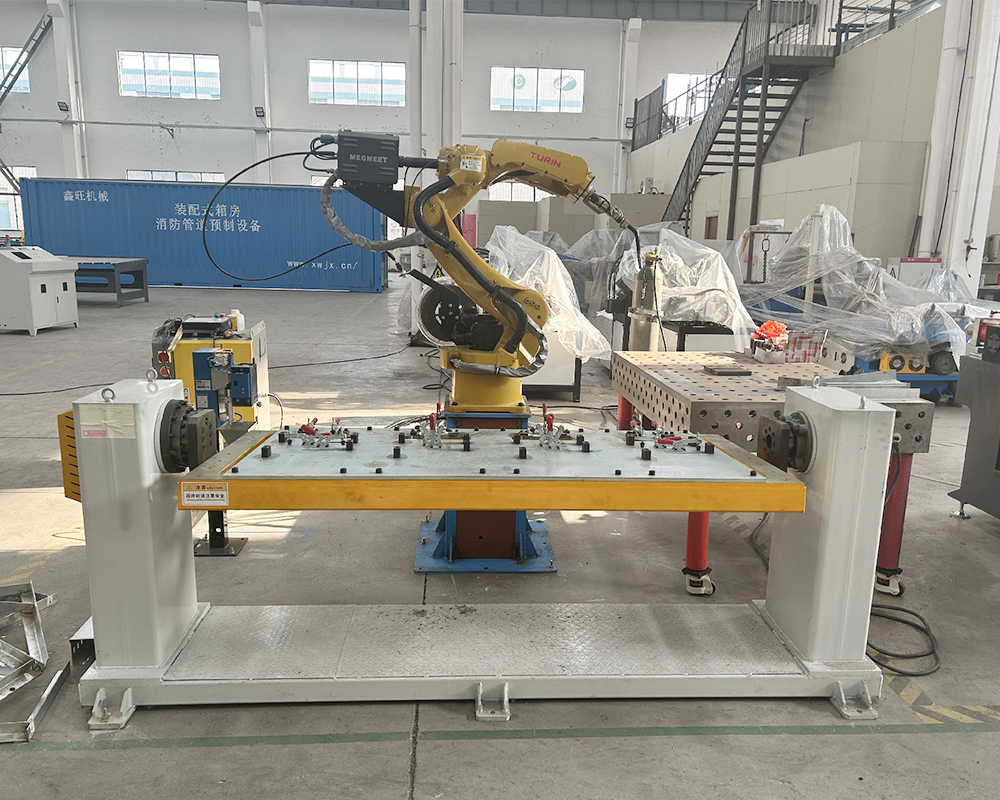

XWHJ Robotic welding machine system is an automatic system for angle iron welding formation that developedby our company, which has the advantages of high efficiency and good quality. It is welcomed by the majority ofusers.

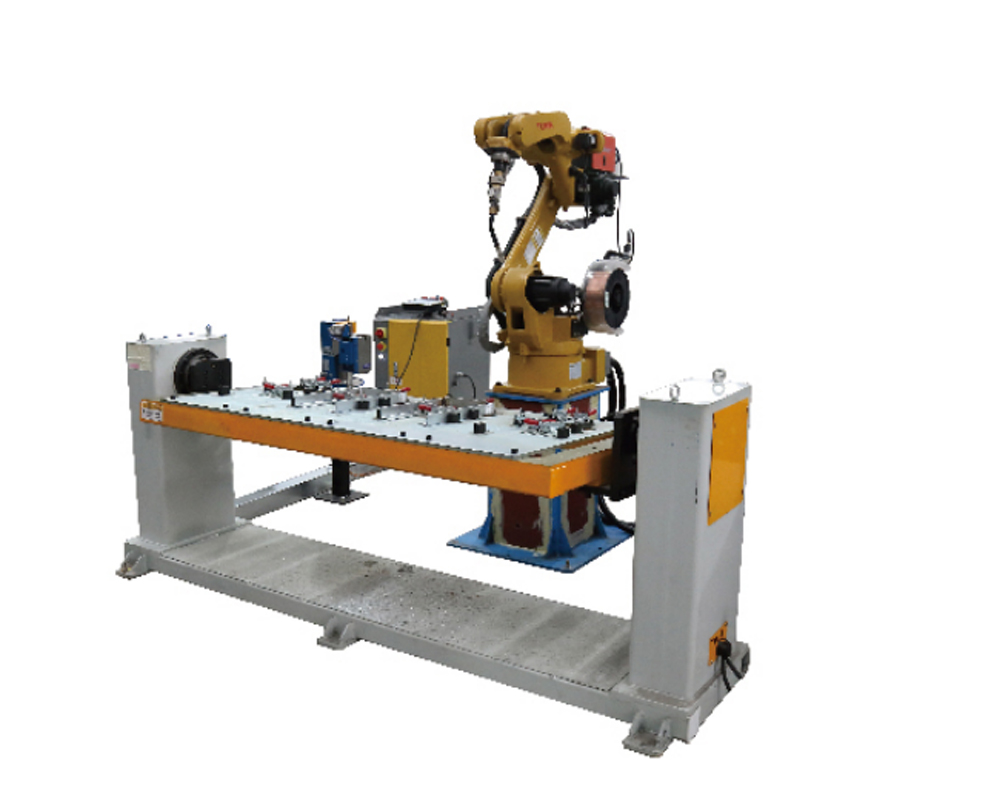

XWHJ robotic system is mainly composed of robots, welding machine and processing foundation support.
Equipment Parameters (Robot)
| Brand: | Turing | Total rated power: | 4.8KW |
| Power supply: | 380v50Hz±10% | Overall dimensions(L*W*H): | 200mm*150mm*200mm |
| Wrist weight: | 10KG | Maximum working radius: | 1455mm |
| Weight: | 160KG | Operating temperature: | 0-45° |
| Repeated positioning accuracy: | ±0.06mm | Degree of freedom: | 6 Axes |
Equipment Parameters (Welding Machine)
| Control mode: | All-digital | Overall dimensions(L*W*H): | 300mm×480mm×620mm |
| Input frequency: | 30~80Hz | Input capacity: | 13.5KVA |
| Rated open circuit voltage: | 63.7V | Rated output current range: | 30～400A |
| Rated output voltage range: | 12~38V | Welding method: | Solid wire |
