PRODUCT INFORMATION
| Model Number: | CYC200 | CYC250 |
| Processing Range: | 2½ inch - 8 inch(76mm-219mm) | 2½ inch - 10inch(76mm-273mm) |
Product Parameters
| Brand Name | XinWang | Certification | CE |
| Minimum Pipe Length | 600m-6000mm | Wall Thickness | ≤10mm |
| Place of Origin | China | HMI(Human Machine Interface) | Chinese,English |
| Product Name | pipe grooving machine | Application | Pipe Grooving |
| Equipment Certification | CE | Rated Power | 12KW |
| Rated Voltage | 380V 50HZ | Equipment Weight | 6000KG |
| Equipment Dimensions(L*W*H) | 8200mm*6000mm*2000mm | Hydraulic Power | 1.5KW |
Product Overview

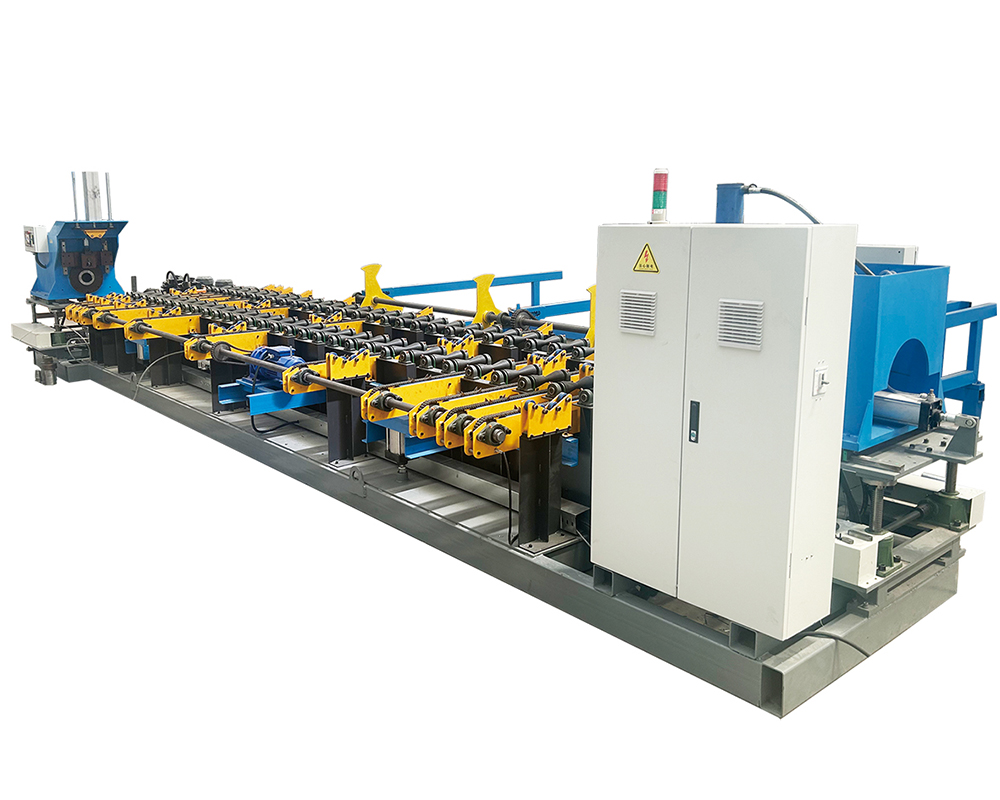

The double-head grooving machine of Jiangyin Xinwang Machinery Co., Ltd. is a high-efficiency and precise pipe processing equipment. It is mainly composed of a material rack, a feeding mechanism, a translation mechanism, and a grooving mechanism. This equipment is specifically designed to meet the grooving processing needs of pipes and can be widely used in the grooving operations of various types of pipes, effectively improving production efficiency and processing quality.
Working Process
- Workers place a whole bundle of pipes on the material rack.
- After the equipment is started, the feeding mechanism feeds the pipes from the material rack to the first station - the positioning station. At this station, the pipes are adjusted by rollers. When one end is adjusted in place, the probe receives a signal and stops the adjustment.
- The translation mechanism moves the pipes to the second station - the grooving station, where the equipment performs grooving on one end of the pipes.
- After the grooving of one end is completed, the translation mechanism moves again to position and translate the other end of the pipes, and then performs grooving on the other end.
Technical Features
- Convenient human-machine interaction: Users can interact with the PLC through the touch screen to easily control the equipment.
- Adjustable grooving depth: The grooving depth can be directly adjusted on the touch screen to meet different processing requirements.
Application Scenarios
- Construction industry: Used for the grooving connection of pipes in building water supply and drainage, fire protection and other systems.
- Industrial pipelines: Suitable for the installation and maintenance of various industrial pipelines, improving the stability and sealing performance of pipeline connections.
Advantages
- Improve production efficiency: The automated feeding, positioning and grooving processes greatly shorten the processing time and improve production efficiency.
- High processing accuracy: Precise positioning and grooving control ensure the quality and consistency of pipe grooving.
- Easy to operate: The intuitive and easy-to-understand touch screen operation interface reduces the skill requirements for operators.
